Building an Eco-Friendly Solar Water Heater with Plastic Bottles

Date:

Share post:

Harnessing the power of the sun to heat water is a sustainable and cost-effective way to reduce energy consumption. In this guide, we’ll explore how to create a solar water heater using plastic bottles, an innovative approach that is both eco-friendly and practical.

Materials Needed:

  • A large number of clear plastic bottles (2-liter soda bottles work well)
  • Black paint (non-toxic, water-resistant)
  • PVC pipes
  • T-connectors for the PVC pipes
  • Hose clamps
  • Plywood or a similar flat surface for mounting
  • Insulating material (like foam or fiberglass)
  • Tools (saw, drill, screws, etc.)

Steps to Build Your Solar Water Heater:

1. Preparation of Plastic Bottles:

  • Remove labels and thoroughly clean the bottles.
  • Paint the outside of each bottle black. Black absorbs heat effectively, which will help in heating the water.

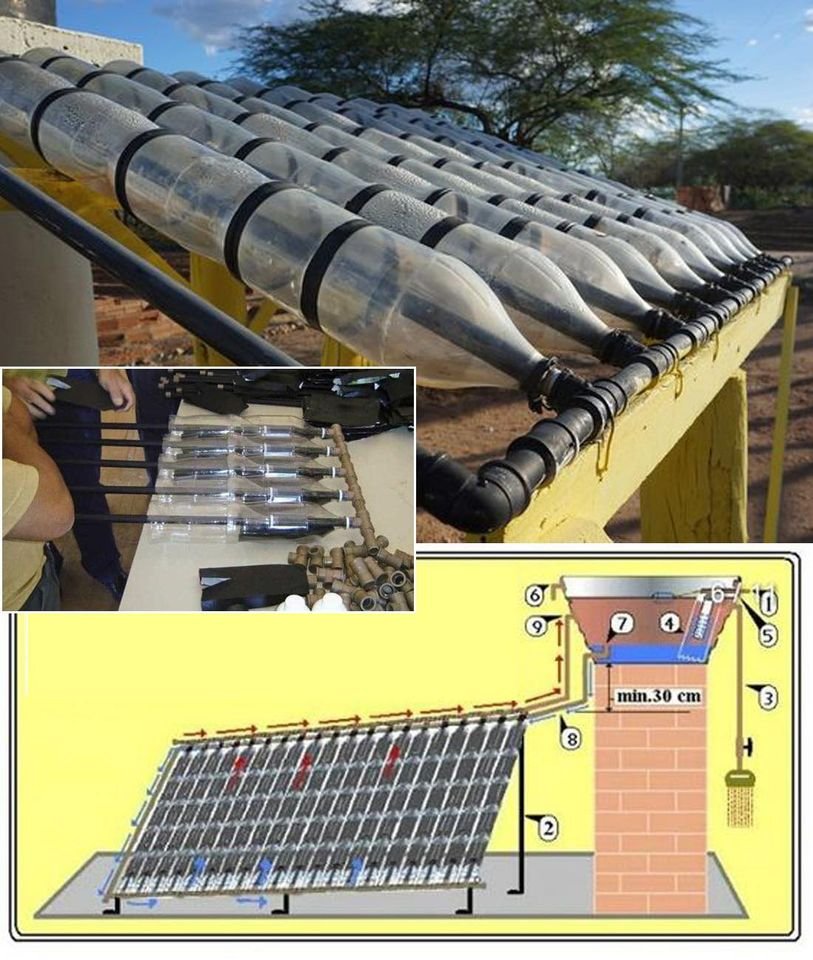

2. Assembling the Water Heater Core:

  • Cut the bottoms off the plastic bottles.
  • Insert a length of PVC pipe through the neck of each bottle.
  • Use T-connectors to attach multiple bottles in a row. Ensure that the bottles are snug against each other to create a continuous water flow channel.

3. Building the Frame and Insulation:

  • Mount the assembled bottles on a large piece of plywood or similar material.
  • Surround the bottles with insulating material to minimize heat loss.
  • The entire setup should be angled to face the sun directly, optimizing solar absorption.

4. Connecting to the Water Supply:

  • Attach the inlet and outlet pipes to your water system. This can be done using additional PVC pipes and hose clamps.
  • The inlet should be at the bottom, and the outlet at the top, as hot water rises.

5. Installation and Safety Precautions:

  • Install the solar water heater in a location that receives maximum sunlight throughout the day.
  • Secure the system firmly to avoid any damage from winds or storms.

Using the Solar Water Heater:

  • The black-painted bottles absorb sunlight, heating the water inside the PVC pipes.
  • As the water heats up, it rises and flows out through the outlet pipe.
  • The system works best during sunny days and can significantly reduce reliance on traditional water heaters.

Building a solar water heater with plastic bottles is an excellent project for anyone interested in DIY solutions for sustainable living. This system not only recycles plastic bottles but also reduces energy costs. While it may not replace a conventional water heater entirely, it serves as a supplementary source of hot water, particularly in sunny climates.
